Custom Flex Coupling Reverse Engineering Case Study

Client Confidential Industrial Manufacturer

Industry Heavy Machinery & Manufacturing

Project Duration 2 Weeks

Services Used 3D Laser Scanning, Reverse Engineering, CAD Modeling

Technologies High-Precision 3D laser Scanner, CAD Software

Accuracy Achieved ±0.02mm

Executive Summary

A client in the heavy industry sector was faced with a critical challenge: a custom-made flex coupling in their production line had failed, and with no OEM spare parts available or existing technical drawings, plant operations were at a standstill.

Sourcing a replacement was impossible through standard catalogues. Our team was engaged to create a perfect digital and physical replica of the damaged component through advanced 3D laser scanning and reverse engineering, enabling a rapid return to operation and securing a digital asset for future needs.

The Challenge

The failed flex coupling was a bespoke, mission-critical component with no available technical documentation. The client's primary challenges were:

No Available Drawings

The coupling was custom-manufactured years ago, and the original design data was lost or never properly documented.

Zero Off-the-Shelf Availability

As a non-standard part, it could not be sourced from any standard component supplier or manufacturer.

Precision Requirements

Flex couplings require extremely high dimensional accuracy to ensure proper alignment, torque transmission, and vibrational damping.

Urgent Production Need

The client's downtime was costing significant revenue, necessitating a swift and accurate solution to get the manufacturing drawing to a production facility.

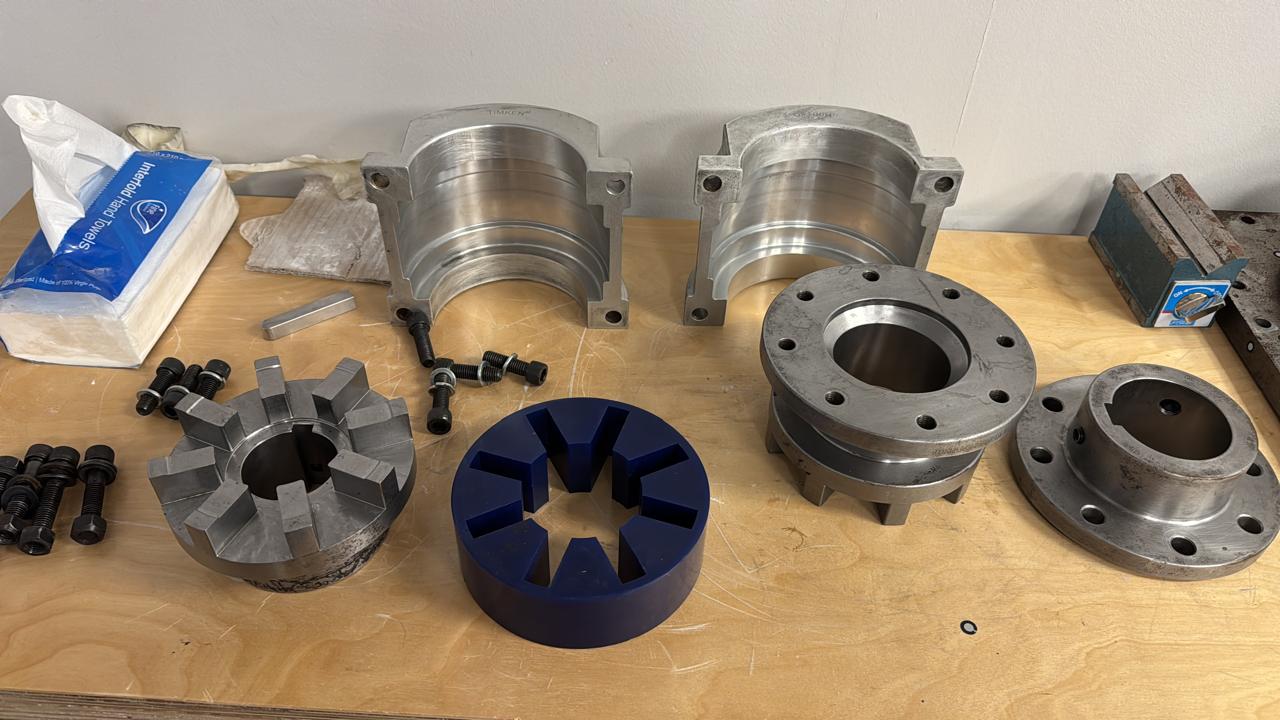

The original damaged flex coupling that required reverse engineering

Our Solution

Our approach leveraged a combination of cutting-edge metrology and expert engineering analysis to recreate the component from the ground up.

1

High-Fidelity 3D Data Capture

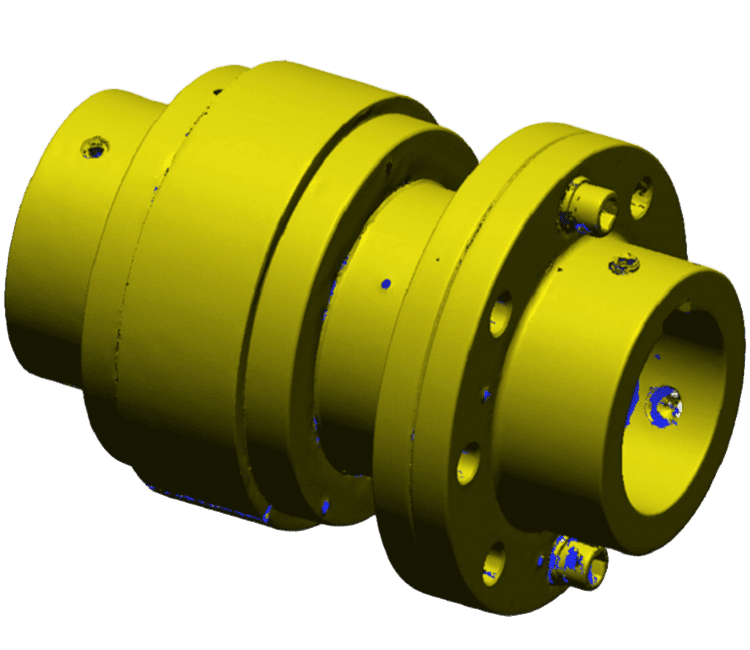

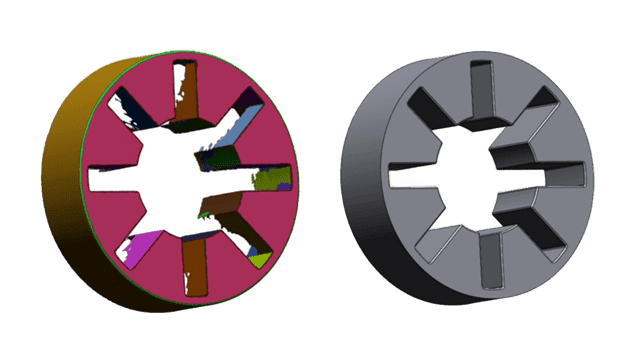

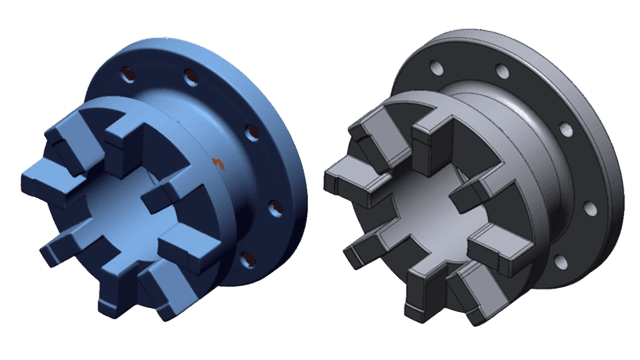

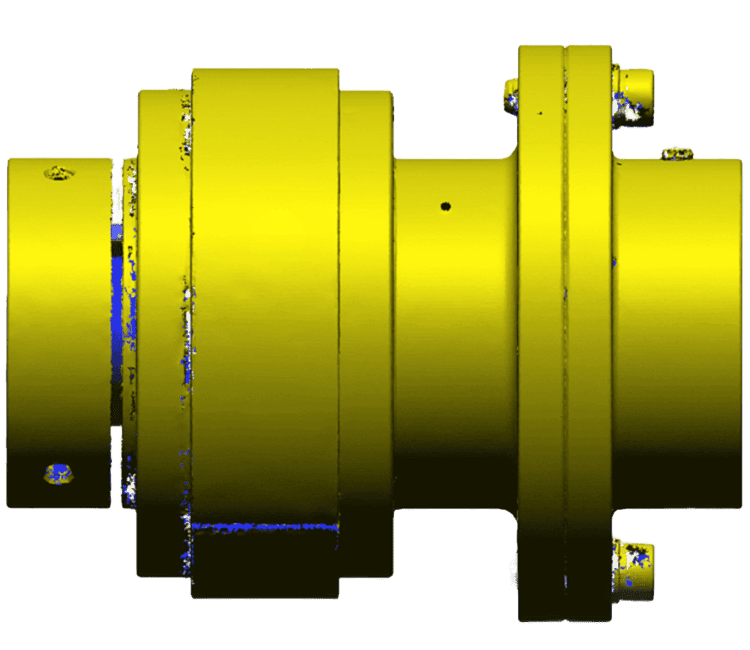

We used high-precision 3D Laser Scanning to capture the complete geometry of the existing, damaged coupling. This non-contact method allowed us to collect millions of data points, creating a highly accurate "point cloud" representation of the part's as-built condition, including its complex contours and internal features.

2

Advanced Reverse Engineering

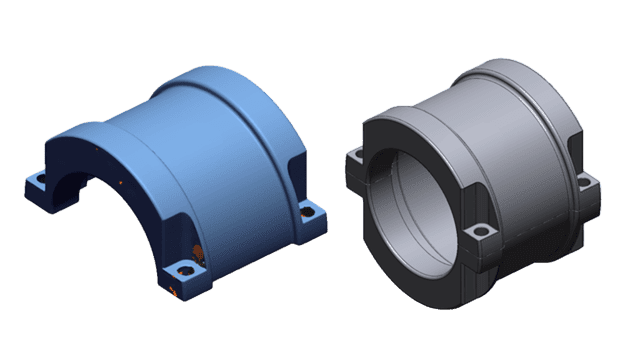

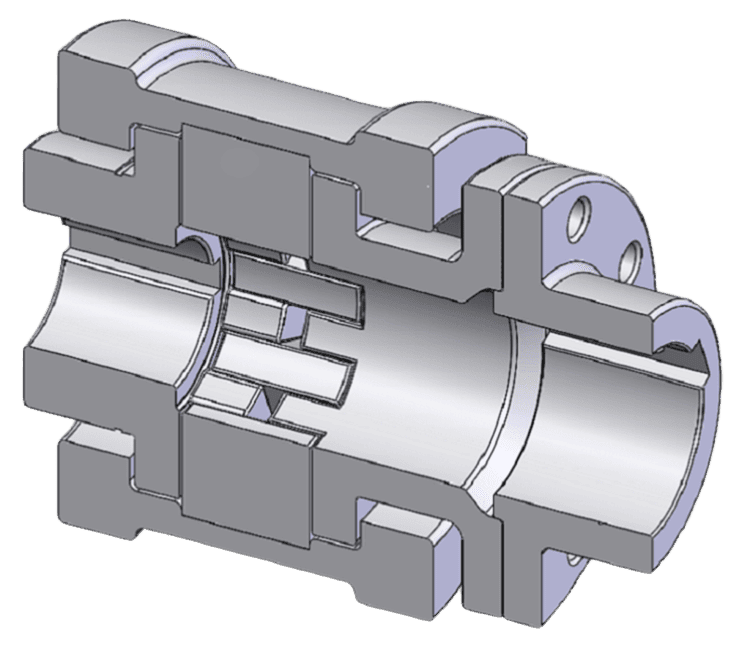

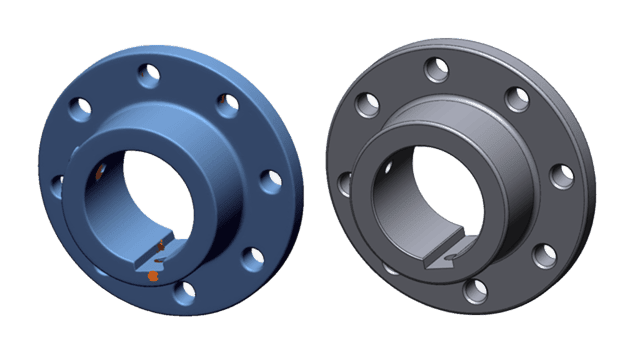

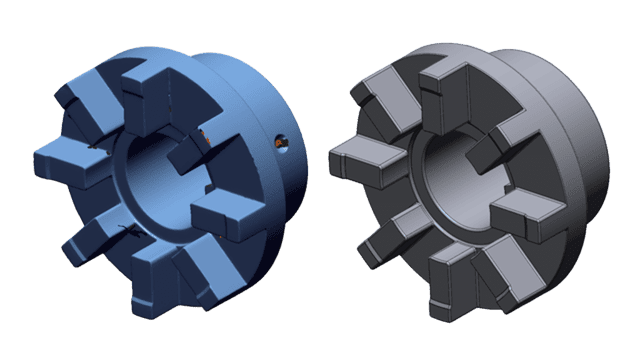

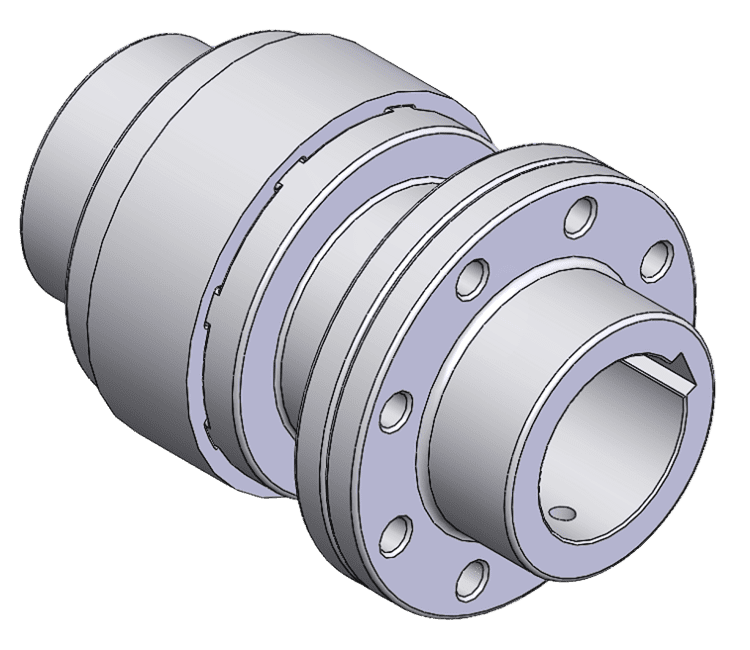

The point cloud data was processed and converted into a precise 3D CAD model. Our engineering team meticulously analyzed the model, distinguishing between original design intent and damage/wear. Critical functional dimensions and tolerances were identified and validated against the coupling's operational requirements. This process resulted in a "perfect" digital twin of the original component.

3

Manufacturing Drawing Generation

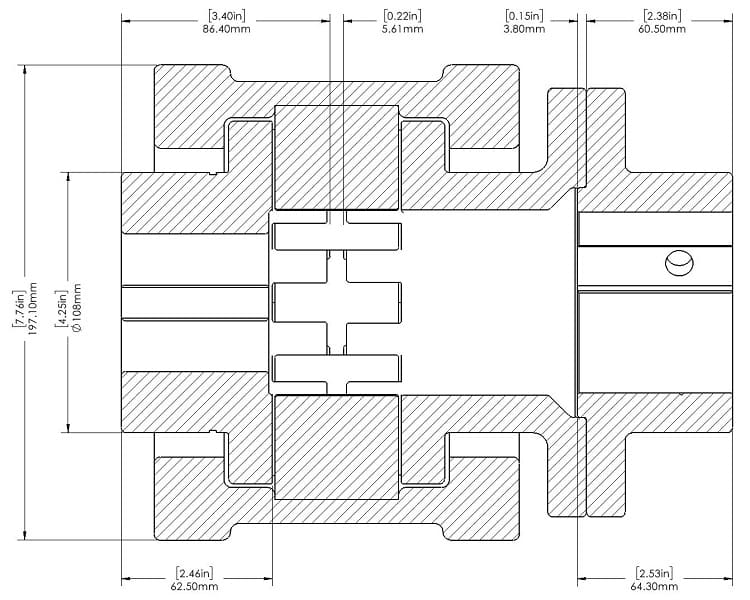

From the validated 3D CAD model, we generated a comprehensive set of detailed manufacturing drawings. These drawings included all necessary views, sections, and detailed callouts for dimensions, geometric tolerances (GD&T), surface finishes, and material specifications required for a machine shop to produce a flawless replacement part.

Key Features & Technical Highlights

Precision Metrology

Utilized 3D laser scanning for unparalleled accuracy in data capture with ±0.02mm precision.

Expert CAD Modeling

Recreated an intelligent, parametric 3D model that captured the original design intent.

Production-Ready Deliverables

Provided industry-standard 2D drawings with full GD&T, enabling any qualified manufacturer to produce the part correctly.

Digital Asset Creation

The client received a full digital package (CAD model & drawings), eliminating future sourcing risks for this specific component.

The Result

By deploying our reverse engineering solution, the client successfully overcame a critical operational blockage and achieved significant benefits.

100%

Perfect Fit & Function

The newly manufactured coupling, based on our drawings, was a perfect fit and restored the system to full operational capacity immediately upon installation.

Eliminated Downtime

The manufacturing drawings were delivered rapidly, allowing production of the replacement coupling to begin without delay, minimizing production losses.

Significant Cost Savings

Avoided the excessive costs associated with prolonged production stoppages and the potential expense of a full system redesign or custom OEM order.

Future-Proofed Supply Chain

The client now possesses a complete digital technical package, allowing them to procure this custom part from any capable manufacturer in the future.

Operational Resilience

Established a framework for dealing with similar legacy part failures in the future, reducing vulnerability to supply chain disruptions.

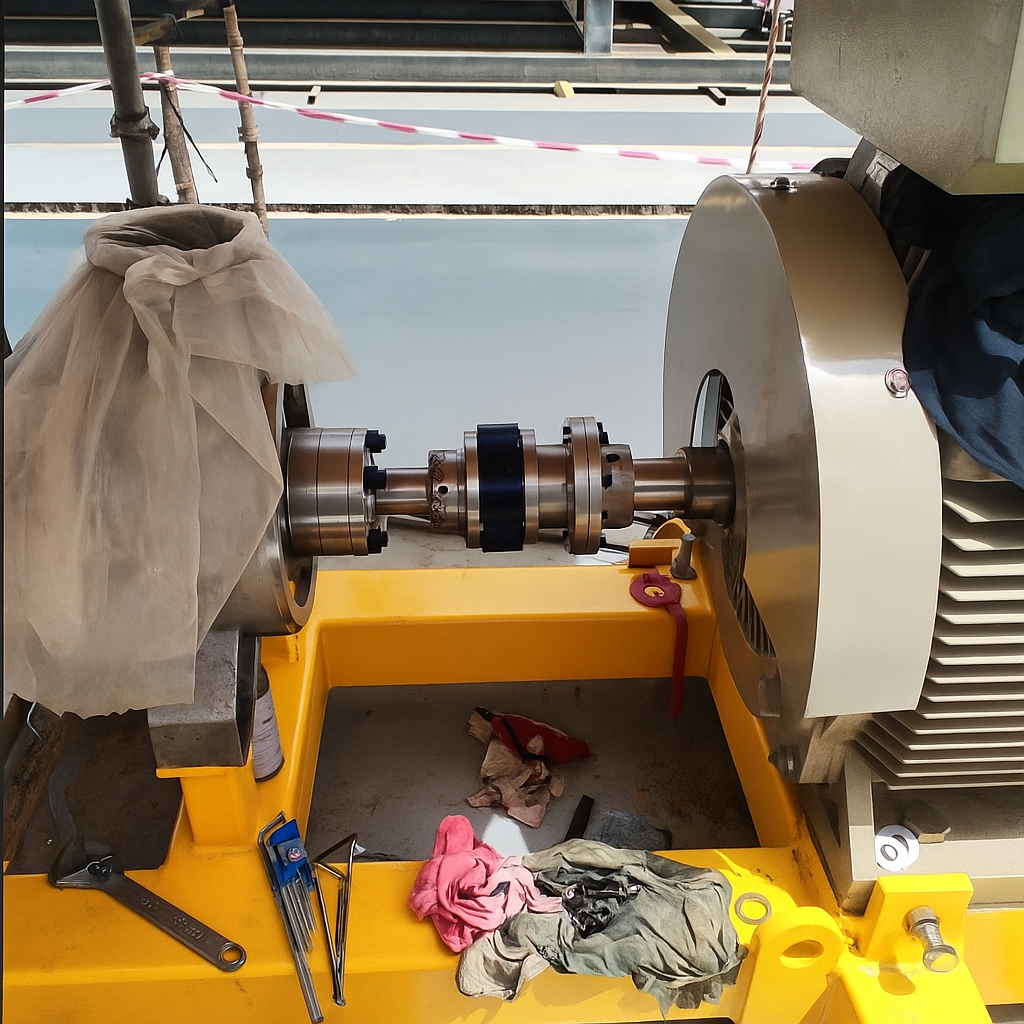

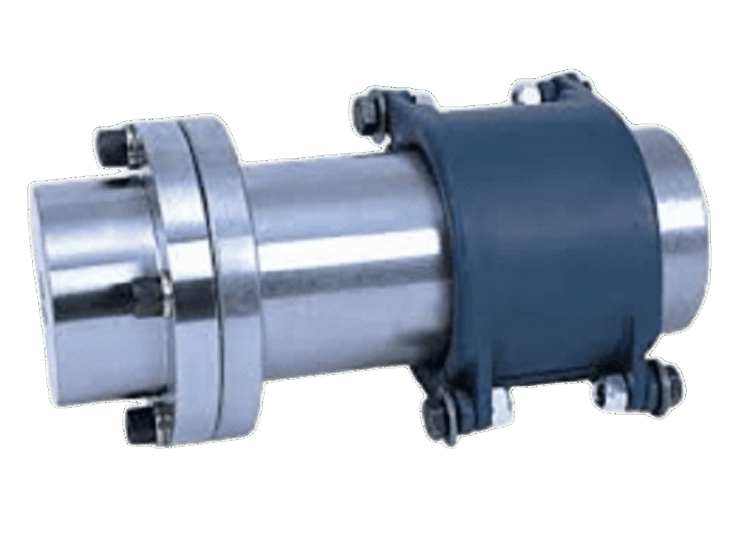

The successfully remanufactured flex coupling installed and operational

Project Gallery

Visual documentation of the reverse engineering process from scan to final manufactured part.
